1. Feature

(1)   Wide Input Voltage 90 to 305VAC, 47 to 63Hz

(2)    Over Voltage / Short Circuit / Over Temperature Protection

(3)    High Efficiency (up to 88%), Active Power Factor Correction (PFC)

(4)    P67 Waterproof Rating, Fully isolated

(5)   Comply to worldwide safety regulations for lighting

(6)    Cooling by free air convection

              (7)   Suitable for LED lighting & moving sign applications, for dry / damp / wet locations

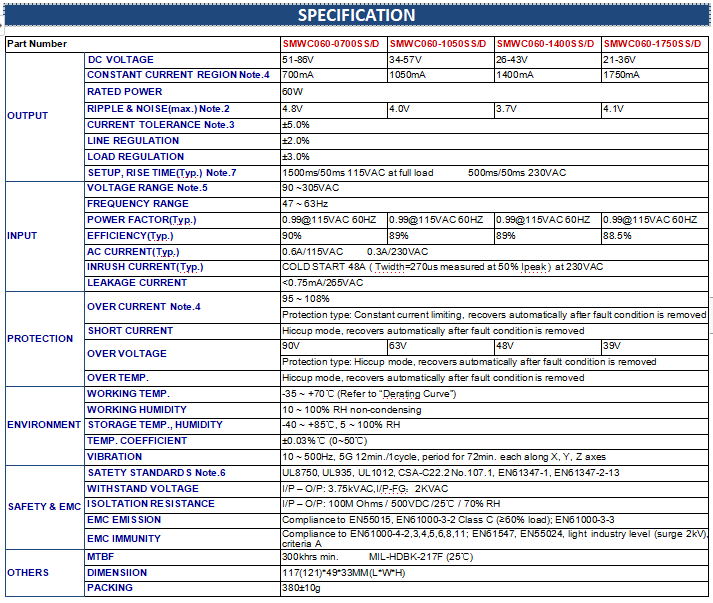

2. Specification

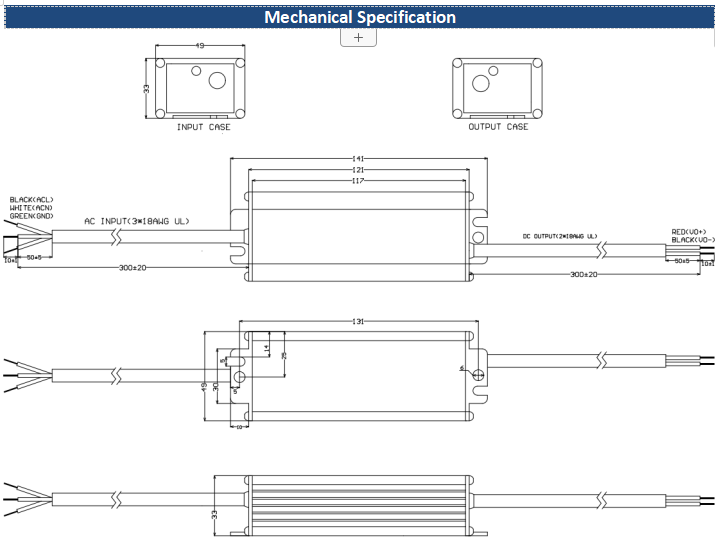

3. Mechanical Specification
