1. Feature

(1)   Wide Input Voltage 100 to 140VAC, 60Hz

(2)   Over Voltage / Short Circuit Protection

(3)   High Efficiency (up to 85%), Active Power Factor Correction (PFC)

(4)   IP22 Waterproof Rating

(5)   Suitable for LED lighting & moving sign applications, for dry / damp

(6)   Cooling by free air convection

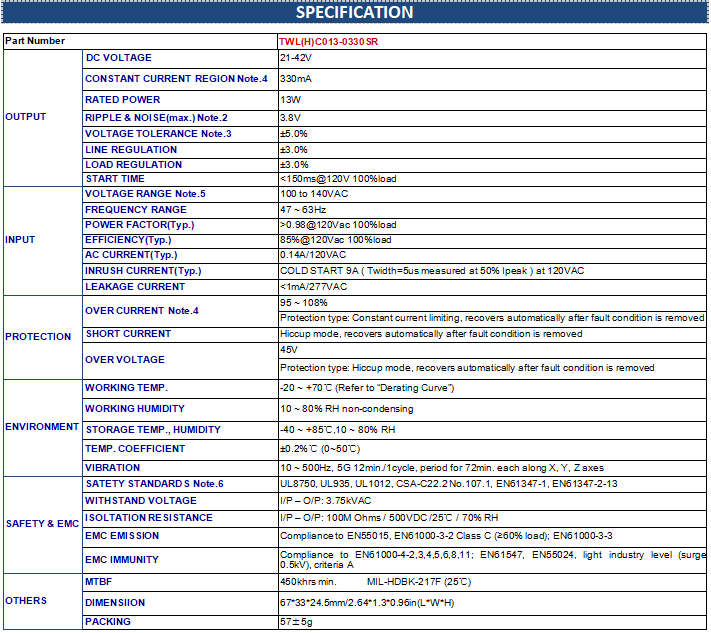

2. Specification

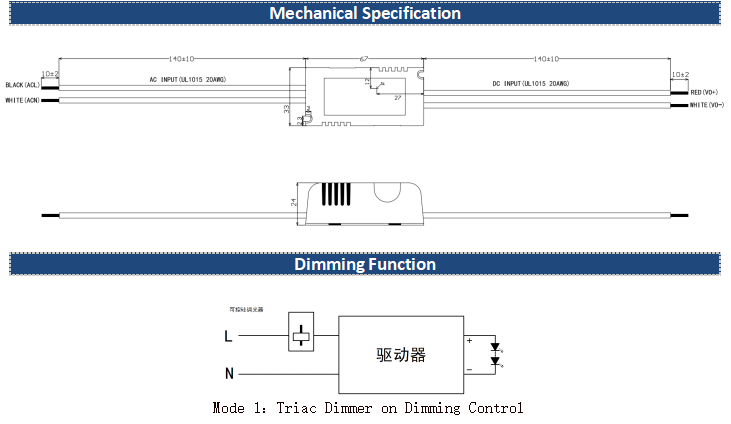

3. Mechanical Specification
