SPNV35 SERIES
35W Single Output IP67 Rated LED Driver





1. Feature


(1)    Universal Input Voltage 90 to 264VAC

(2)    Constant voltage output mode

(3)    Waterproof rating IP67

(4)    Built-in active power factor correction

(5)    Class II power, no FG

(6)    Short circuit, over voltage, over current, and over temperature protections

              (7)   No flickering

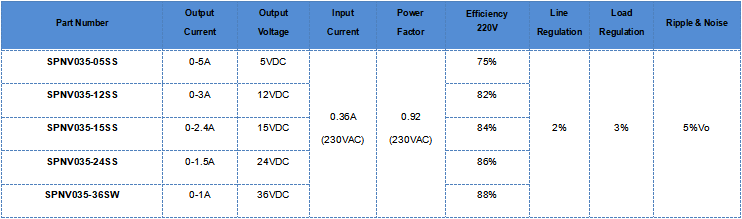

2. Specification

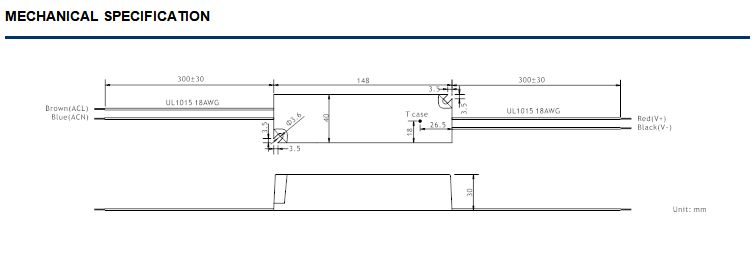

       3. Mechanical Specification
