TMAX-0630-R82-M Molded Power Inductor

Features

l  Low profile

l  Low core loss and low DCR

l  High rated current

l  High performance (Isat) realized by metal dust core

l  RoHS compliant and Halogen Free

l  Low EMI and low noise

Applications

l  Voltage Regulator Module

l  DC/DC converters

l  Thin type on-board power supply module for exchanger

l  Graphics cards

l  Laptops and PCs

l  SSD modules

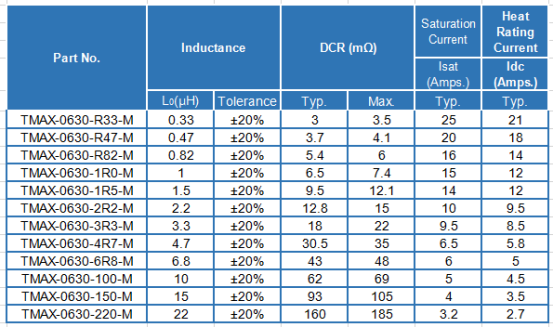

Product Description
