Home > Transformer
RM

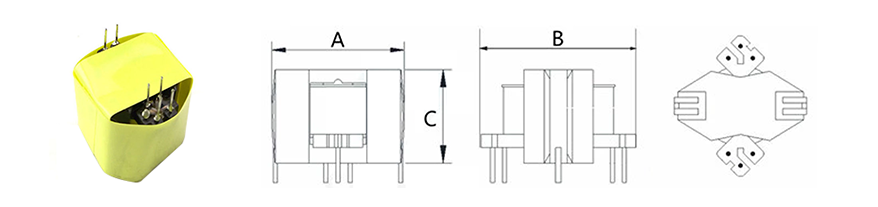

RM high frequency transformer
1. Feature
Type:RM
Bobbin material:Phenolic
Certification:UL/CE/RoHs
Operating temperature:-40℃to +125℃
Storage temperature:-25℃to+85℃
Working Frequency:20KHZ-500KHZ
Core material:MnZn power Ferrites Magnet

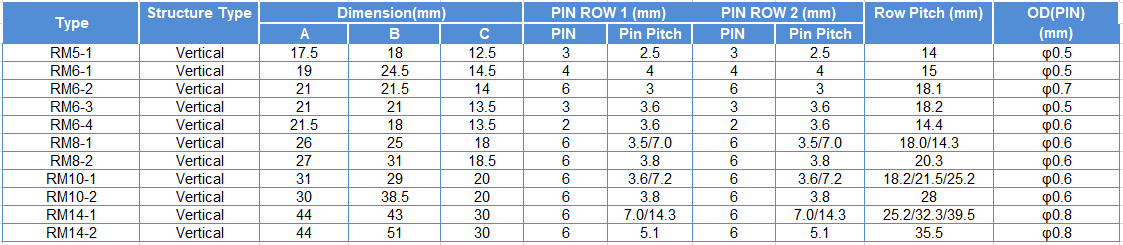

2. Specification
